Product details

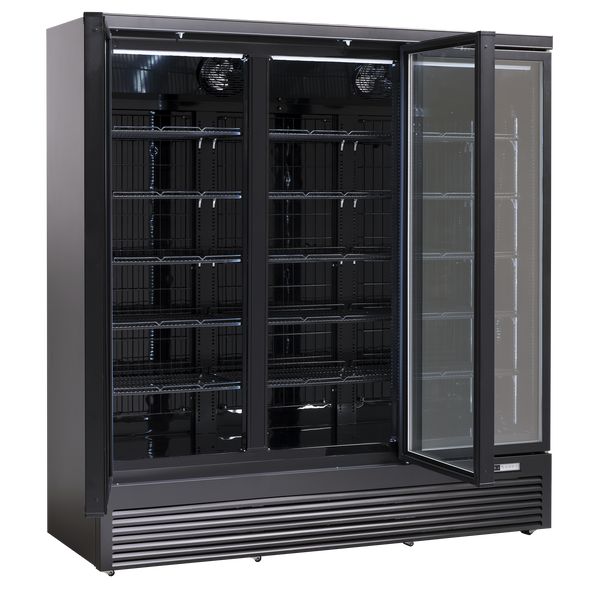

DF1563BD is a large 3-door display freezer, with a whopping 1090 net liters of cold storage.
The display freezer is both eminent for impulse sales and highlights products in the best way. The shelves can be adjusted in many levels so that products can stand stable and nicely represented in the freezer.
Display freezers are used in shops, supermarkets, cafes, restaurants, pizzerias, gas stations, etc. and are very suitable for self-service, which provides a good opportunity to place the cabinet strategically to create focus and additional sales.
Interior and cabinet
Comes with 15 black, strong wire shelves with threads that ensure that all types of products are stable on the shelves. The shelves can be adjusted in many levels. The cabinet has 8 powerful wheels, 2 of which with brakes, so it is always possible to move, even when it is full. The cabinet has hinged doors with lock, so it is possible to lock the cabinet. The doors close automatically, which always minimizes temperature rises.
Lighting
4 vertical and 3 horizontal energy-saving LED lights in the front provide a good light and represent the goods beautifully.
Function
The cabinet has Intelligent air circulation system, which ensures perfectly ventilated cooling throughout the cabinet. DF1563BD is electronically controlled and has an external digital control panel, so it is easy to see and adjust the temperature in the cabinet.
Branding
Branding is a company's special profile, and the essence of branding is to make companies and their products stand out from the crowd and capture the attention of consumers. DF1563BD is extremely suitable for branding on the sides and can, if desired, be decorated in your design to achieve extra visibility around the brand. Scandomestic has many years of experience in decorating refrigerated and frozen commercial products and can help with branding of products according to your wishes.
Note
Side-by-side solution option with DC614BB, DC1080BB, DF560BC, DF1006BD
Model with 2 compressors and 2 circuits 2 x 95 gr.
Item number: 25324010000DF1563BD
EAN code: 5704704020122
QTY in 40HQ: 18
Taric goods code: 8418501190
Daily Energy Consumption, kWh/24: 23,84
Annual energy cons. kWh/a: 8702
Energy Efficiency Index (EEI): 45,3
Noise level, dB(A): 68
Refrigeration / freezing technique: Ventilated
Defrost method: Automatic
Temperature range °C: -15~-30
Climate class: 3
Bulb Watt, W: 12+12+12
Global Warming Potential: 3
Type of refrigerant: R290a
Ventilation Method: Ventilated cooling
Temperature class: L1
Refrigerant Gas, total g: 190
NoFrost: Yes
Control panel: Outside
Handle: Integrated
External thermometer: No
Digital display: Yes
Internal light: 3 Vertical LED + 3 Horizontal LED
Reversible door: No
Self closing door: Yes
Door- / lid type: Left/right hinged
Number of castors, pcs: 8 castors
Controller: Electronic
Lock & Key: No
Canopy light sign: No
Number of shelves: 15
Adjustable shelves: Yes
Shelves material: Black wire
Door shelves / balconies: Yes
Large shelves size WxD, mm: 470x624
Small shelves size WxD, mm: 470x551
Internal light colour temperature, kelvin: 10000
Max loading per shelf/basket, kg: 30
Product dimensions, HxWxD, mm: 2003 x 1880 x 730
Product depth w/handle, mm: 760
Packaging dimensions, HxWxD, mm: 2090 x 1905 x 770
Total packaging volume m3: 3,066
Gross volume, L: 1563
Net volume, L: 1090
Internal dimensions, HxWxD, mm: 1538 x 1760 x 580
Gross- / Net weight, kg: 355 / 305
Voltage / hertz, V/hz: 220-240V / 50hz
No. of electrical phases: 1L+N
Watt / Ampere, W/A: 1280 / 7,2
Length of Powercord, cm: 200
Outside colour: Black
Inside Colour: Black
Colour and material of door/lid: Glass
Total packaging weight, kg: 23,22
Cardboard, kg: 8,7
Plastics, kg: 0,5
Wood, kg: 13,6
Metals, kg: 0,05
DF1563BD
item no.: 25324010000DF1563BD
- Product dimensions, HxWxD, mm 2003 x 1880 x 730
- Climate class 3
- Gross volume, L 1563
- Brand Scancool
- • Large presentation area - slim aluminum door frames
- • 3 horizontal and 3 vertical LED's
- • 8 strong castors
- • Digital temperature control
- • 15 adjustable coated wire shelves
- • Ventilated cooling
- • Self evaporating drip tray
- • Model with 2 compressors and 2 circuits 2 x 95 gr,
