Product details

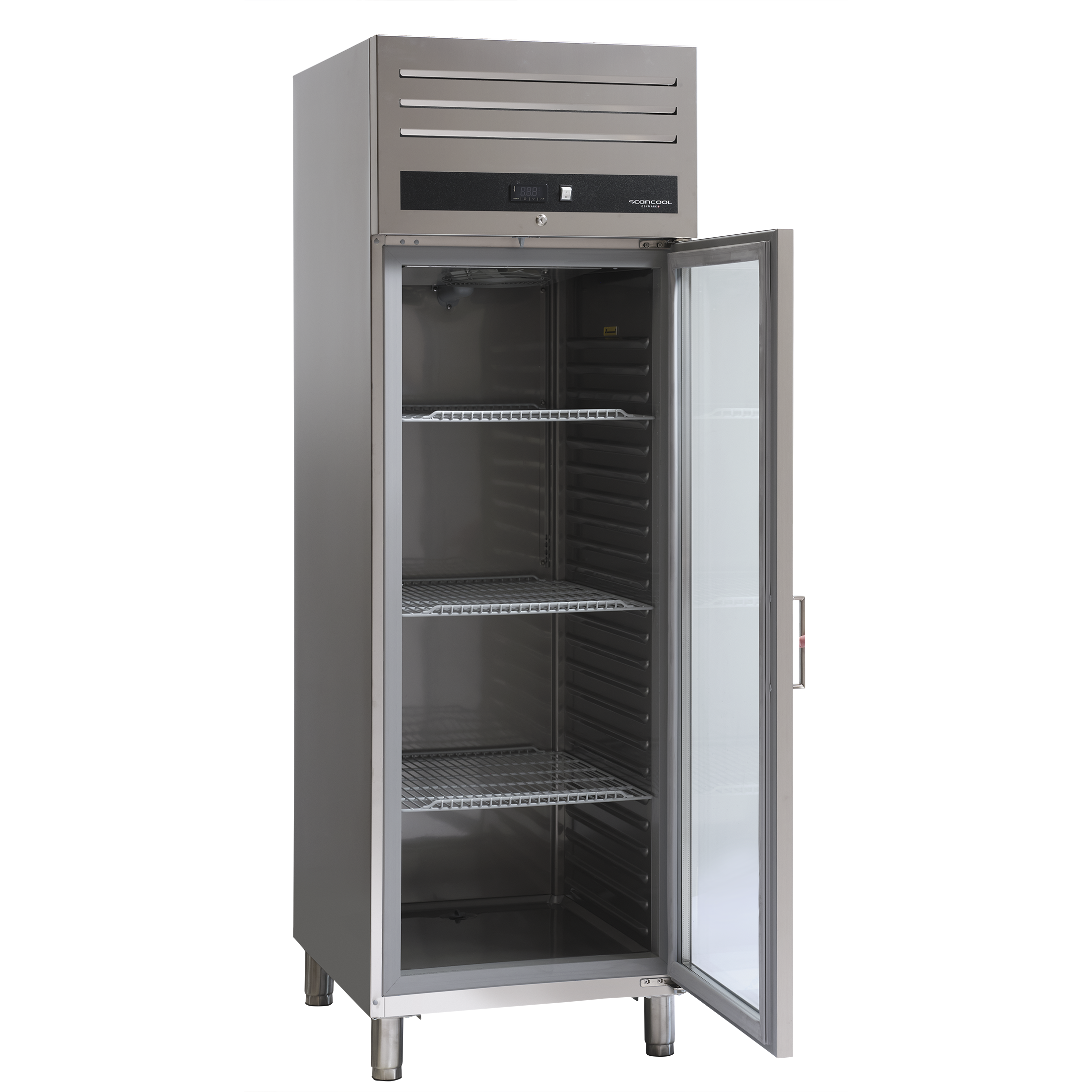

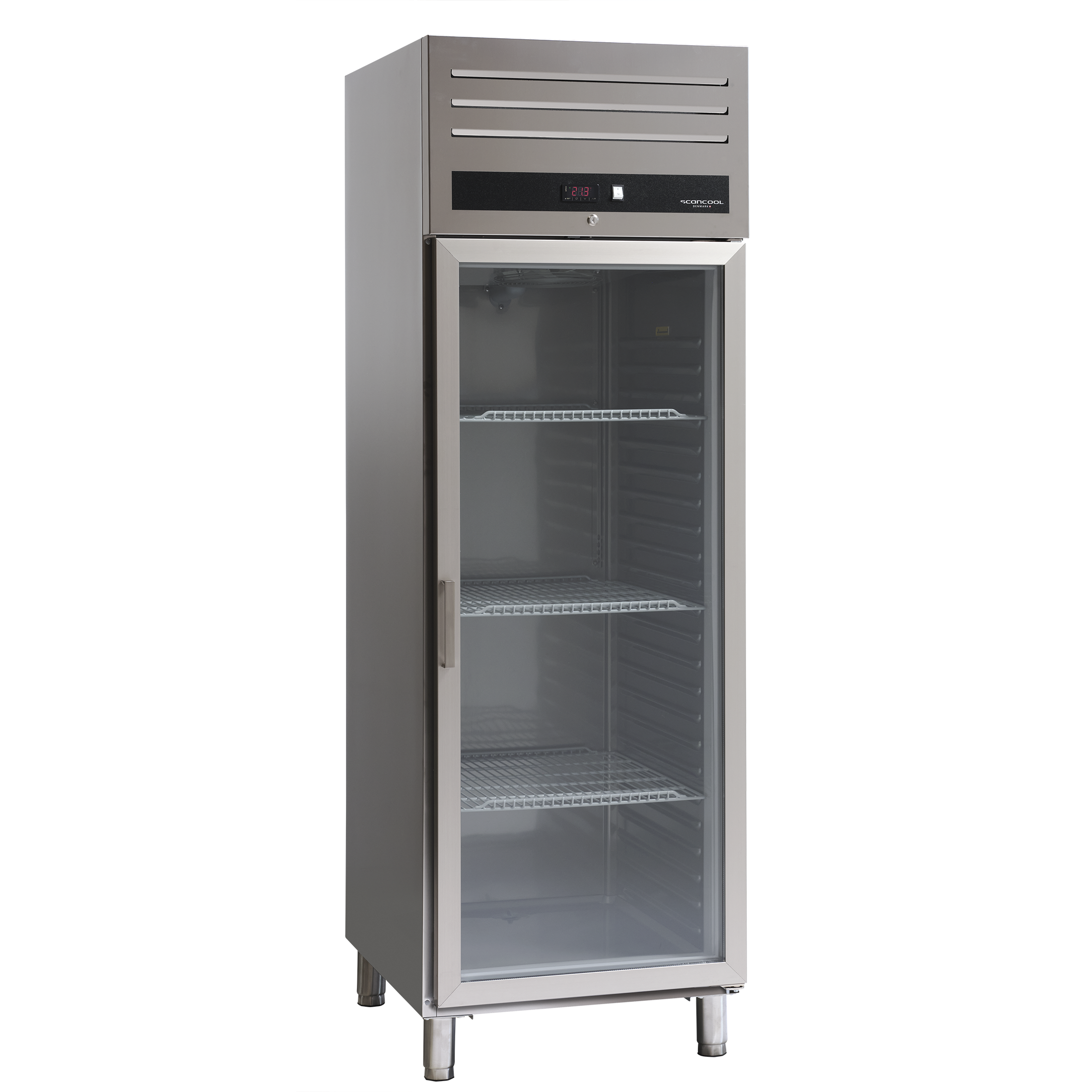

The GUR 700 GDX is a 461 liter full-door refrigerator with a reversible glass door and a practical integrated lock in the door.
The refrigerator is made of the best quality steel inside and out.
The refrigerator is ideal for storing refrigerated goods in any food production company and commercial kitchen.
Display
External digital control panel is placed in an ergonomic and user-friendly position.
Intuitive digital control allows to adjust the temperature parameters easily and quickly, and the display always shows the temperature in operation.
Iinterior
The fridge has Epoxy-coated wire shelves, with a maximum capacity of up to 40 kg.
The shelves are adjustable at 23 intervals of 55 mm, ensuring great flexibility in the layout of the fridge.
Suitable for food containers GN 2/1 or 2 x GN 1/1. Three GN 2/1 shelves are included from the factory.
Features
The fridge features Intelligent Air Circulation System, which ensures perfectly ventilated cooling with its innovative airflow design. Integrated door switch stops ventilation when the door is opened, saving energy.
Light
LED lighting with low energy consumption. Light on/off switch for better interior visibility when the doors are closed, for viewing the contents of the cabinet.
Self-closing door and adjustable legs
The fridge comes right hinged, but can also be left hinged. The door is solid full-length stainless steel, with an integrated handle that avoids dust and dirt accumulation.
The door has a 120° dwell position, and closes automatically at less than 90° which minimizes temperature rises.
Height adjustable stainless steel legs from 125 to 200 mm, can be replaced with castors which can be purchased as optional equipment. In addition, a foot pedal for hands-free door opening can be purchased.
Cleaning
Removable sealing strip in the door for better and more hygienic cleaning. The sealing strip is also easy to replace in case of wear and tear without calling in a fitter, so it is easy to maintain the insulating properties.
Shelves are adjustable and in addition, the inner cabinet is made with curved joints, which makes cleaning even easier. Bottom panel with water drain specially designed to make cleaning faster and easier.
Cabinet
Internal and external construction made of high quality stainless steel, AISI 201 stainless steel exterior and AISI 304 stainless steel interior. Insulation 60 mm thickness, CFC-free.
Additional equipment:
Order RES-27245 for 1 pc. GN 2/1. epoxy-coated wire shelf
Order RES-27361 for 1 pc. GN 2/1. stainless steel wire shelf
Order RES-27362 for 1 set of door kits for turning the door from right hinged to left hinged
Order RES-27370 for 1 pc. foot pedal for left side mounting
Order RES-27363 for 1 pc. foot pedal for right side mounting
Order RES-27364 for 1 set of 4 castors, diameter 100mm, 2 castors with brakes
Item number: 63318510000GUR700GDX
EAN code: 5704704016323
QTY in 40HQ: 45
Taric goods code: 8418501990
CE approved: Yes
Daily Energy Consumption, kWh/24: 2,4
Annual energy cons. kWh/a: 876
Energy Efficiency Index (EEI): 14,8
Noise level, dB(A): 50
Refrigeration / freezing technique: Ventilated
Temperature range °C: -2 / 8
Climate class: 4
Bulb Watt, W: 6
Ventilation Method: Ventilated cooling
Temperature class: M2
Type of refrigerant: R600a
Refrigerant Gas, total g: 98
Humidity range (%RH): 60
Control panel: Outside
Handle: Outside
External thermometer: Yes
Digital display: Yes
Internal light: 1 Horizontal LED
Number of feet: 4
Reversible door: No
Self closing door: Yes
Door- / lid type: Right hinged
Number of castors, pcs: 0
Controller: Electronic
Lock & Key: Yes
Number of shelves: 3
Adjustable shelves: Yes
Large shelves size WxD, mm: 530x650
Small shelves size WxD, mm: 530x650
Internal light colour temperature, kelvin: 6500
Max loading per shelf/basket, kg: 40
Product dimensions, HxWxD, mm: 2040 x 653 x 842
Product depth w/handle, mm: 842
Packaging dimensions, HxWxD, mm: 2100 x 740 x 920
Total packaging volume m3: 1,43
Gross volume, L: 543
Net volume, L: 461
Internal dimensions, HxWxD, mm: 1358 x 533 x 683
Gross- / Net weight, kg: 120 / 105
Voltage / hertz, V/hz: 220-240V / 50hz
No. of electrical phases: 1L+N
Watt / Ampere, W/A: 183 / 0,9
Length of Powercord, cm: 300
Outside colour: Stainless Steel
Inside Colour: Stainless Steel
Colour and material of door/lid: Stainless steel / glass
Total packaging weight, kg: 13,6
Cardboard, kg: 5
Plastics, kg: 0,1
Wood, kg: 8,5
Metals, kg: 0,1
GUR700GDX
item no.: 63318510000GUR700GDX
- Product dimensions, HxWxD, mm 2040 x 653 x 842
- Climate class 4
- Gross volume, L 543
- Humidity range (%RH) 60
- Brand Scancool
- • Right hinged self-closing glass door with 120° dwell position
- • Suitable for GN 2/1 containers
- • Height-adjustable stainless legs 125-200mm
- • 3 Epoxy-coated wire shelves - max 40 kg capacity
- • AISI 304 stainless steel internally
- • AISI 201 stainless steel externally
- • Also available as 60 Hz for marine / offshore as an order item
- • 1 set of door-kit for reversing the door can be purchased as an additional accessory
