Product details

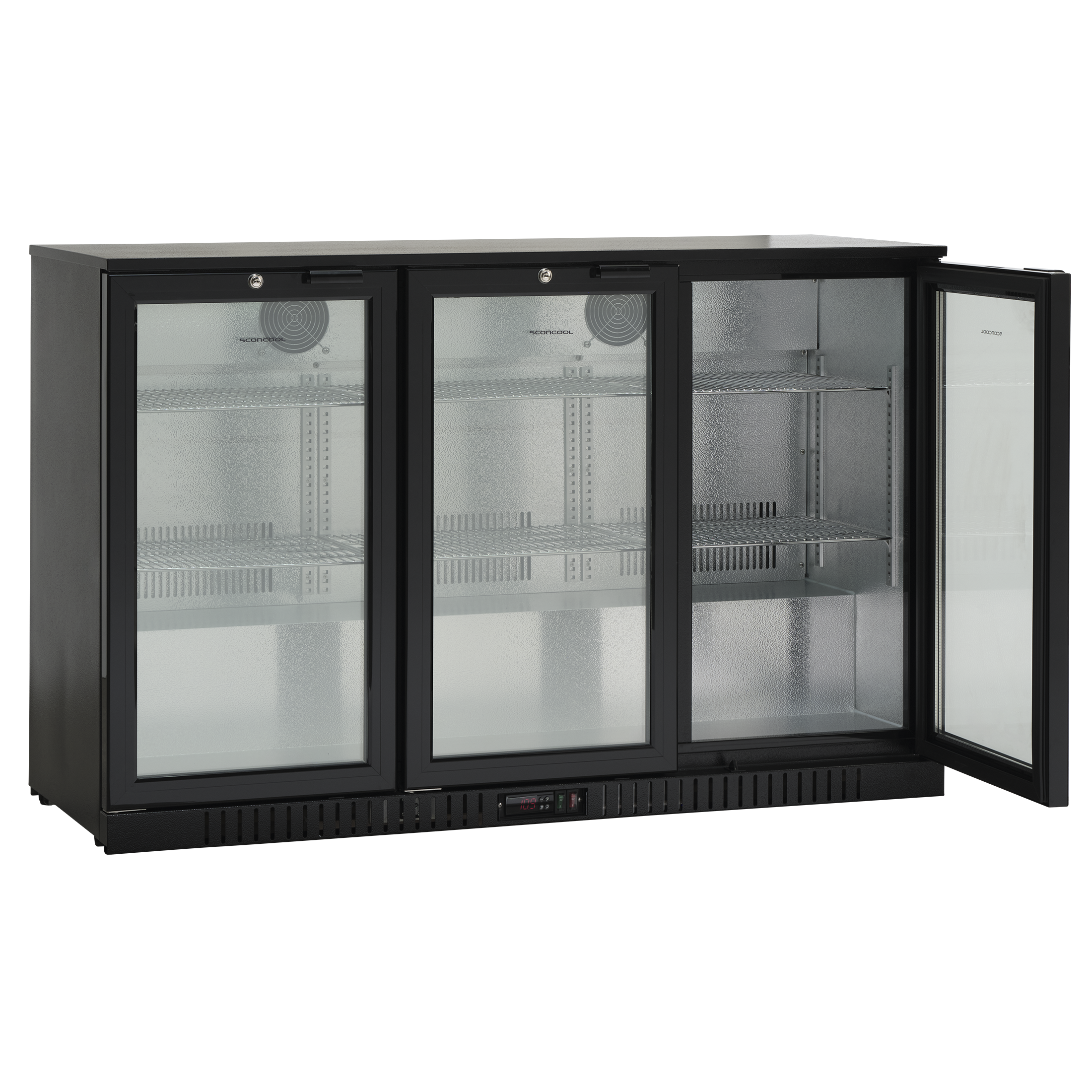

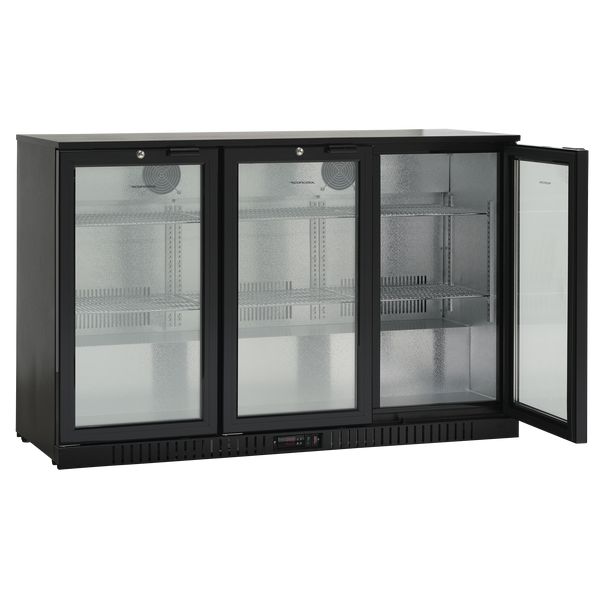

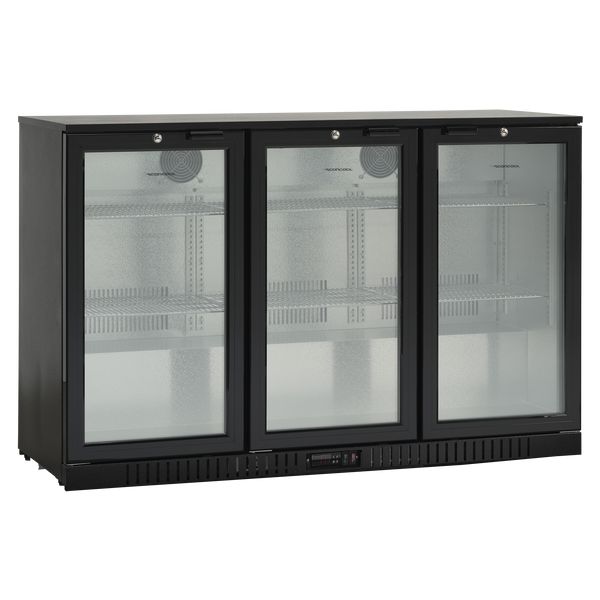

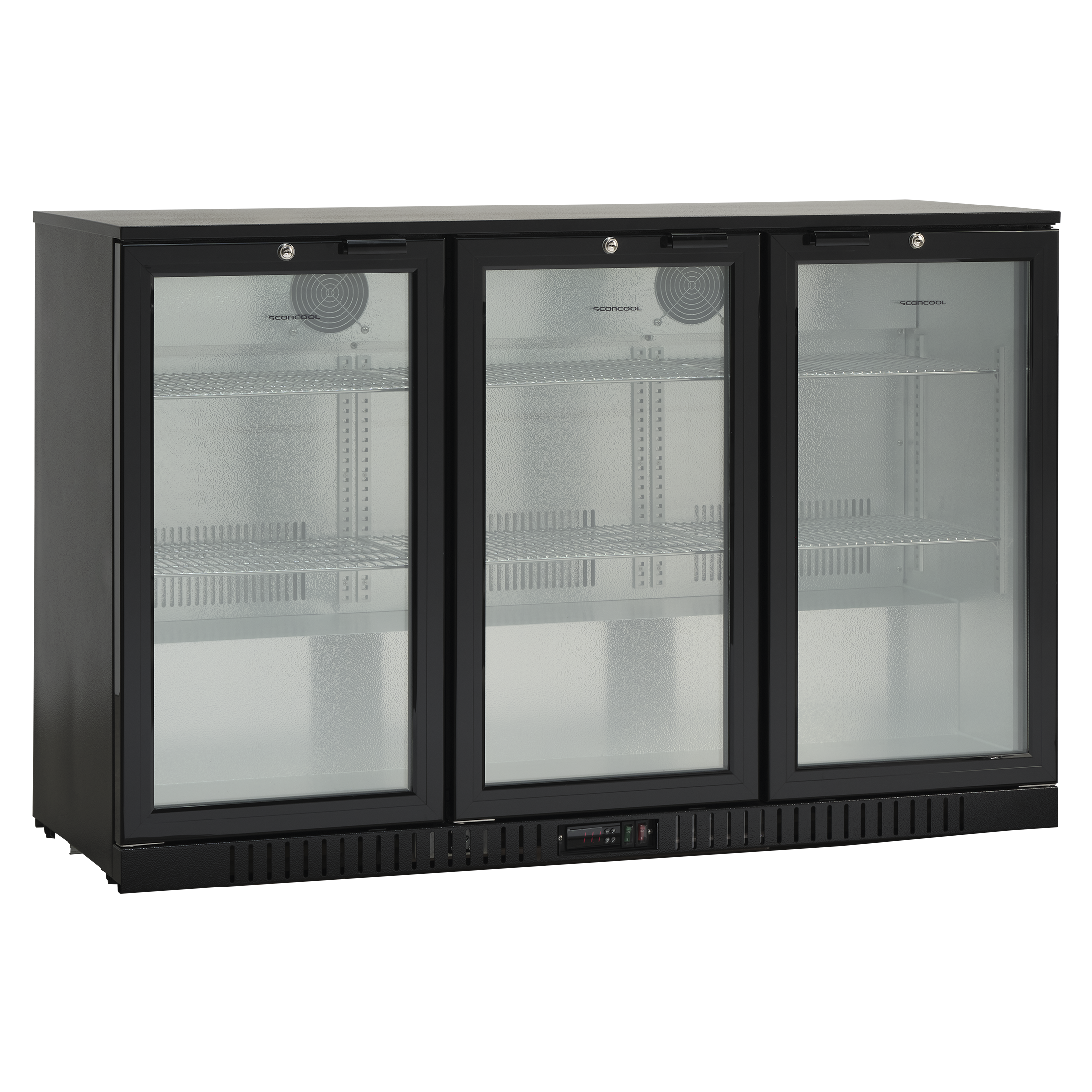

BB311HBA is a 3-door refrigerator with right-hinged glass doors and a total cooling capacity of 254 litres. Backbars are ideal for cooling all types of beverages, wine, and glasses and are commonly used in cafés, bars, hotels, and restaurants where both performance and presentation are essential.
Interior and cabinet
The cabinet is less than 90 cm high and features right-hinged glass doors with front ventilation, making it especially suitable for built-in installation under counters or bars. Backbars are also well suited as minibars in hotel environments.
The BB311HBA is equipped with two durable chrome shelves with tightly spaced wires, ensuring that bottles, cans, and glasses stand securely. Each shelf supports up to 30 kg, and the adjustable shelves allow for flexible arrangement to suit different needs. The front feet are height-adjustable, ensuring the cabinet stands level and stable on all floor types.
Each door is fitted with a lock, allowing the unit to be secured after business hours or in self-service areas. This provides additional security and better control of contents during daily operation. The self-closing door system minimizes temperature fluctuations and prevents unnecessary loss of cold air, helping to maintain consistent cooling and reduce energy consumption – ideal for busy professional environments.
Lighting
Energy-efficient LED lighting provides bright and pleasant illumination and ensures clear visibility of the cabinet’s contents, even in dimly lit spaces such as bars and cafés. The lighting enhances the visual presentation of the products and creates a clean, professional appearance.
Function
Electronic temperature control ensures precise cooling performance and easy operation with accurate adjustments. The system automatically regulates cooling for improved energy efficiency. An external digital display allows you to check the cabinet’s internal temperature at a glance. The built-in air circulation system provides even and consistent cooling throughout the interior – ideal in settings where the doors are frequently opened and closed. The BB311HBA can be set to temperatures between 0°C and 10°C, ensuring the perfect serving temperature for most types of beverages.
Capacity – bottles and cans
33 cl bottle (230.0 x 63.0 mm): 98 pcs
50 cl bottle (260.0 x 66.7 mm): 74 pcs
25 cl can (134.0 x 53.3 mm): 274 pcs
33 cl can (115.2 x 66.3 mm): 188 pcs
33 cl slim can (146.0 x 57.5 mm): 202 pcs
50 cl can (160.0 x 66.3 mm): 114 pcs
Item number: 26311010000BB311HBA
EAN code: 5704704022362
QTY in 40HQ: 66
Taric goods code: 8418501990
UKCA approved: No
CE approved: Yes
Daily Energy Consumption, kWh/24: 1,38
Annual energy cons. kWh/a: 503,7
Energy Efficiency Index (EEI): 8
Defrost method: Automatic
Climate class: 4
Temperature range °C: 0 / 10
Bulb Watt, W: 3
Global Warming Potential: 3
Refrigeration / freezing technique: Ventilated
Ventilation Method: Ventilated cooling
Type of refrigerant: R600a
Refrigerant Gas, total g: 40
Humidity range (%RH): 65
Controller: Electronic
Control panel: Outside
Handle: Outside
Door- / lid type: Left/right hinged
Self closing door: Yes
Reversible door: No
Number of feet: 4 adjustable
External thermometer: No
Digital display: Yes
Internal light: Horizontal LED
Lock & Key: Yes
Canopy light sign: No
Number of shelves: 6
Adjustable shelves: Yes
Shelves material: Cromed wire
Large shelves size WxD, mm: 399 x 346
Small shelves size WxD, mm: 399 x 346
Internal light colour temperature, kelvin: 6000
Max loading per shelf/basket, kg: 15
Product dimensions, HxWxD, mm: 865 x 1350 x 530
Max. adjustable height, mm: 10
Product depth w/handle, mm: 530
Packaging dimensions, HxWxD, mm: 950 x 1400 x 570
Total packaging volume m3: 0,758
Gross volume, L: 308
Gross- / Net weight, kg: 86 / 82
Net volume, L: 254
Internal dimensions, HxWxD, mm: 715 x 1270 x 415
Voltage / hertz, V/hz: 220-240V / 50hz
No. of electrical phases: 1L+N
Watt / Ampere, W/A: 120 / 0,54
Length of Powercord, cm: 220
Outside colour: Black
Inside Colour: Aluminum
Colour and material of door/lid: Glass
Edge trim on shelves / drawers: None
33 cl Bottle 230,0 x 63,0 mm: 155
50 cl Bottle 260,0 x 66,7 mm: 116
25 cl Can 134,0 x 53,3 mm: 426
33 cl Can 115,2 x 66,3 mm: 296
33 cl Slim Can 146,0 x 57,5 mm: 313
50 cl Can 160,0 x 66,3 mm: 180
Total packaging weight, kg: 4,5
Cardboard, kg: 3,2
Paper, kg: 0
Plastics, kg: 1,3
Wood, kg: 0
Metals, kg: 0
Aluminium, kg: 0
BB311HBA
item no.: 26311010000BB311HBA
- Product dimensions, HxWxD, mm 865 x 1350 x 530
- Gross volume, L 308
- Climate class 4
- Humidity range (%RH) 65
- Brand Scancool
- ■ Ultra energy-efficient
- ■ Ventilated cooling for fast and even pull-down cooling
- ■ Self-closing doors with lock
- ■ Electronic thermostat and light swich
- ■ 6 adjustable chrome shelves
- ■ LED interior lighting
- ■ Temperatur range 0-10°C
