Product details

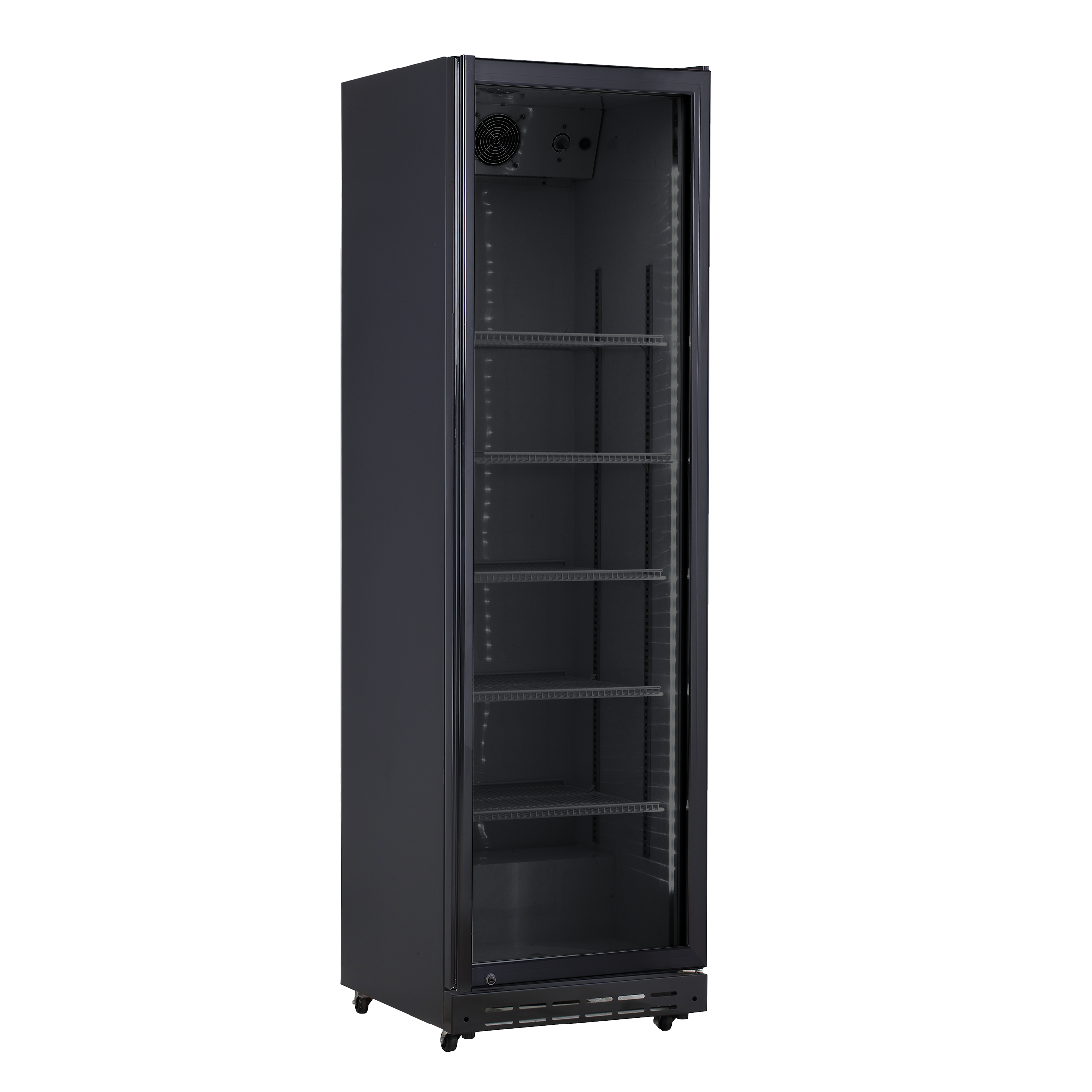

DC430BD is a large 1-door display refrigerator, with 360 l net cooling.
The display cooler is both excellent for impulse sales and highlights products in the best way. The shelves can be adjusted in many levels so that bottles, cans and other things are stable and nicely represented in the cooler.
Display refrigerators are used in shops, supermarkets, cafes, restaurants, pizzerias, gas stations, etc. and are very suitable for self-service, which provides a good opportunity to place the cabinet strategically to create focus and additional sales.
Interior and cabinet
Comes with 5 black, strong wire shelves (max 35 kg loading) that ensure that all types of glasses, cans and bottles are stable on the shelves. The cabinet has 4 adjustable feet. The cabinet has a right-hinged door with a lock that closes automatically, which always minimizes temperature rises.
Lighting
2 vertically energy-saving LED light in the front provides a good light and represents the goods nicely.
Function
The cabinet has an air circulation system, which ensures perfectly ventilated cooling throughout the cabinet. DC430BD is mechanical controlled.
Design
The cabinet has been created with a focus on a stylish and exclusive look, where both the exterior and the interior come together. The all-black interior gives an elegant and calm look that highlights the contents in a discreet and professional way.
The integrated black lock in the door ensures safe storage, while the all-over black handle supports the stringent design and provides a consistent finish. The vertical LED light in the front adds a modern and inviting look, while at the same time presenting the products optimally.
The flat, illuminated canopy completes the whole and provides excellent opportunities for visual branding, so that the cabinet serves not only as storage, but also as a strong visual element in the store.
Capacity bottles and cans
33 cl bottle 230.0 x 63.0 mm: 269 pcs
50 cl bottle 260.0 x 66.7 mm: 165 pcs
25 cl can 134.0 x 53.3 mm: 612 pcs
33 cl can 115.2 x 66.3 mm: 402 pcs
33 cl slim can 146.0 x 57.5 mm: 520 pcs
50 cl can 160.0 x 66.3 mm: 297 pcs
Accessory
So that the cabinet always looks well-trimmed and the products in the cabinet are presented in the best possible way, extra special shelves can be purchased.
With the special shelf, there will always be products at the front of the cabinet, because the next item automatically rolls to the edge as soon as an item is taken off the shelf. The shelf is placed on top of the existing wire shelf and has a 70 mm acrylic stop in the front. It is still possible to mount shelf labels on the original shelf, even if special shelves are used. Roller shelves:
Suitable for cans and other containers with a flat bottom. Available in packages of 5 pieces.
Slider shelves: Suitable for Pet bottles with curved/uneven bottoms. Variable in packages of 5 pieces.
Branding
Branding is a company's special profile, and the essence of branding is to make companies and their products stand out from the crowd and capture consumers' attention.
DC430BD is extremely suitable for branding on the pages and can, if desired, be decorated in your design to achieve extra visibility around the brand. Scandomestic has many years of experience in decorating commercial products on refrigerators and freezers and can help with branding products according to your wishes.
Item number: 263111DC430BD
EAN code: 5704704023185
QTY in 40HQ: 75
Taric goods code: 8418501990
UKCA approved: No
CE approved: Yes
Daily Energy Consumption, kWh/24: 1,95
Annual energy cons. kWh/a: 711,75
Energy Efficiency Index (EEI): 41
Defrost method: Manual
Climate class: CC2
Temperature range °C: 0 / 10
Bulb Watt, W: 11
Global Warming Potential: 3
Refrigeration / freezing technique: Ventilated
Ventilation Method: Fan assisted
Type of refrigerant: R600a
Refrigerant Gas, total g: 48
Humidity range (%RH): 65
Controller: Mechanical
Control panel: Outside
Handle: Integrated
Door- / lid type: Right hinged
Self closing door: Yes
Reversible door: No
Number of castors, pcs: 4 casters (2 w/brake)
External thermometer: No
Digital display: No
Internal light: 2 Vertical LED
Canopy light sign: No
Lock & Key: Yes
Number of shelves: 5
Adjustable shelves: Yes
Shelves material: Black wire
Max loading per shelf/basket, kg: 34
Large shelves size WxD, mm: 465 x 455
Internal light colour temperature, kelvin: 6500

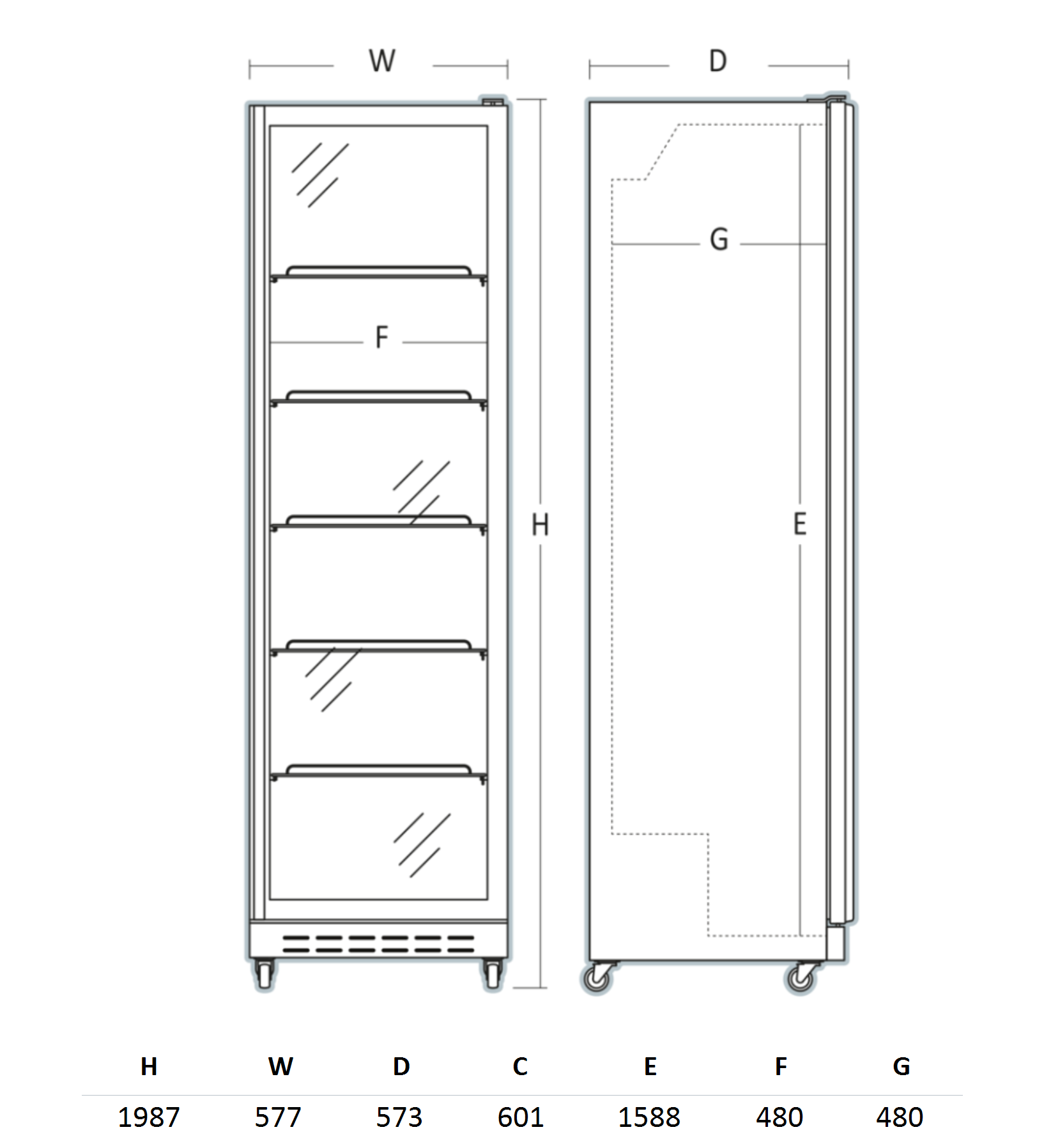

Product dimensions, HxWxD, mm: 1987 x 577 x 573
Product depth w/handle, mm: 601
Packaging dimensions, HxWxD, mm: 630 x 624 x 2035
Total packaging volume m3: 0,8
Gross volume, L: 392
Gross- / Net weight, kg: /
Net volume, L: 360
Internal dimensions, HxWxD, mm: 1588 x 480 x 480
Voltage / hertz, V/hz: 220-240V / 50hz
No. of electrical phases: 1L+N
Watt / Ampere, W/A: 250 / 1,4
Length of Powercord, cm: 220
Outside colour: Black
Inside Colour: Black
Colour and material of door/lid: Black
Edge trim on shelves / drawers: None
33 cl Bottle 230,0 x 63,0 mm: 269
50 cl Bottle 260,0 x 66,7 mm: 165
25 cl Can 134,0 x 53,3 mm: 612
33 cl Can 115,2 x 66,3 mm: 402
33 cl Slim Can 146,0 x 57,5 mm: 520
50 cl Can 160,0 x 66,3 mm: 297
Cardboard, kg: 4
Plastics, kg: 0,9

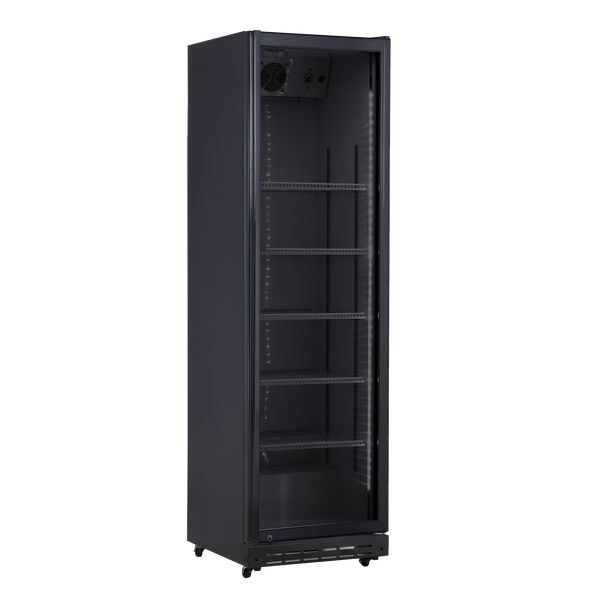

DC430BD
item no.: 263111DC430BD
- Product dimensions, HxWxD, mm 1987 x 577 x 573
- Gross volume, L 392
- Climate class CC2
- Humidity range (%RH) 65
- Brand Scancool
- ■ Self-closing hinged glass door with lock
- ■ 5 adjustable black coated wire shelve
- ■ 2 vertical LED in front
- ■ Ventilated cooling
- ■ 4 strong castors
- ■ Special shelves for best presentation, available as accessory
