Product details

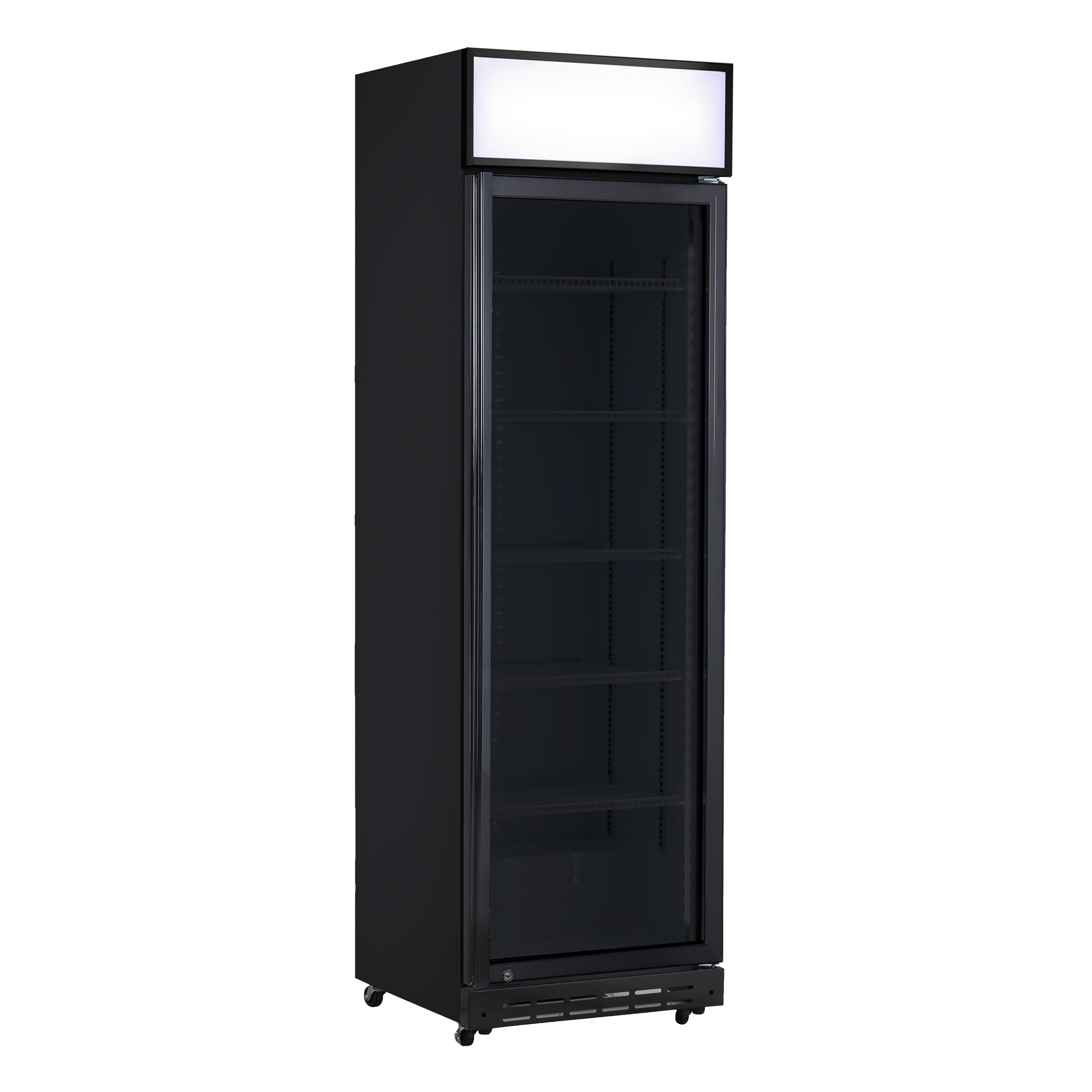

DCC 420BD is a single-door display cooler with a net capacity of 386 litres.
The display cooler is ideal for impulse sales and provides an attractive presentation of products. The shelves can be positioned at multiple levels, allowing bottles, cans and other products to be displayed neatly and securely.
Display coolers are widely used in shops, supermarkets, cafés, restaurants, pizzerias, petrol stations and similar locations. They are particularly suitable for self-service environments and can be strategically positioned to attract attention and encourage additional sales.
Interior and cabinet
The cooler is supplied with 5 strong black wire shelves, designed to provide stable storage for different types of bottles, cans and other containers.
The cabinet is fitted with 4 castors, 2 with brakes, making it easy to move even when fully stocked. The right-hinged door is equipped with a lock, allowing the cabinet to be secured when required.
The self-closing door helps minimise temperature increases by ensuring that the door does not remain open unnecessarily.
Design
The illuminated canopy provides an excellent opportunity for prominent display of a brand, logo or other marketing message, making the cooler particularly suitable for retail environments.
The consistent black design of both the cabinet and interior creates a stylish and professional appearance, while allowing the displayed products to stand out clearly and remain well organised.
Light
Two vertical energy-efficient LED lights at the front, combined with one horizontal LED light, provide effective illumination and an attractive presentation of the displayed products.
Function
The cabinet features ventilated cooling, ensuring an even distribution of cold air throughout the cabinet.
Accessories
Optional special shelves are available to help keep the cabinet looking well stocked and ensure optimal product presentation.
With these shelves, products are automatically moved towards the front as items are removed, helping maintain a neat and fully stocked appearance. The special shelf is placed on top of the existing wire shelf and features a 70 mm acrylic front stop. Shelf-edge strips can still be fitted to the original shelves when the special shelves are used.
Roller shelves: Suitable for cans and other containers with a flat base. Available in packs of 5. Glider shelves: Suitable for PET bottles with curved or uneven bases. Available in packs of 5.
Branding
Branding helps create a distinctive company and product identity, making products stand out and attract consumer attention.
The DCC 420BD is particularly suitable for customised branding on the cabinet sides and can be decorated with your own design to increase brand visibility. Branding on the illuminated canopy provides an additional opportunity to attract attention and support impulse sales.
Scandomestic has many years of experience in customised decoration and branding of commercial refrigeration and freezer products and can assist with creating a solution tailored to your requirements.
Item number: 263111DCC420BD
EAN code: 5704704023208
QTY in 40HQ: 75
Taric goods code: 8418501990
UKCA approved: No
CE approved: Yes
Temperature range °C: 0 / 10
Global Warming Potential: 3
Daily Energy Consumption, kWh/24: 1,75
Annual energy cons. kWh/a: 638
Energy Efficiency Index (EEI): 37
Refrigeration / freezing technique: Ventilated
Ventilation Method: Fan assisted
Climate class: CC2
Type of refrigerant: R600a
Refrigerant Gas, total g: 46
Bulb Watt, W: 23
Humidity range (%RH): 65
Defrost method: Manual
Controller: Mechanical
Digital display: No
Internal light: 2 Vertical LED + 1 Horizontal LED
Handle: Integrated
Reversible door: Yes
Control panel: Outside
Canopy light sign: No
External thermometer: No
Self closing door: Yes
Door- / lid type: Right hinged
Number of castors, pcs: 4 casters (2 w/brake)
Lock & Key: Yes
Number of shelves: 5
Adjustable shelves: Yes
Shelves material: Black wire
Max loading per shelf/basket, kg: 34
Large shelves size WxD, mm: 465 x 455
Internal light colour temperature, kelvin: 6500

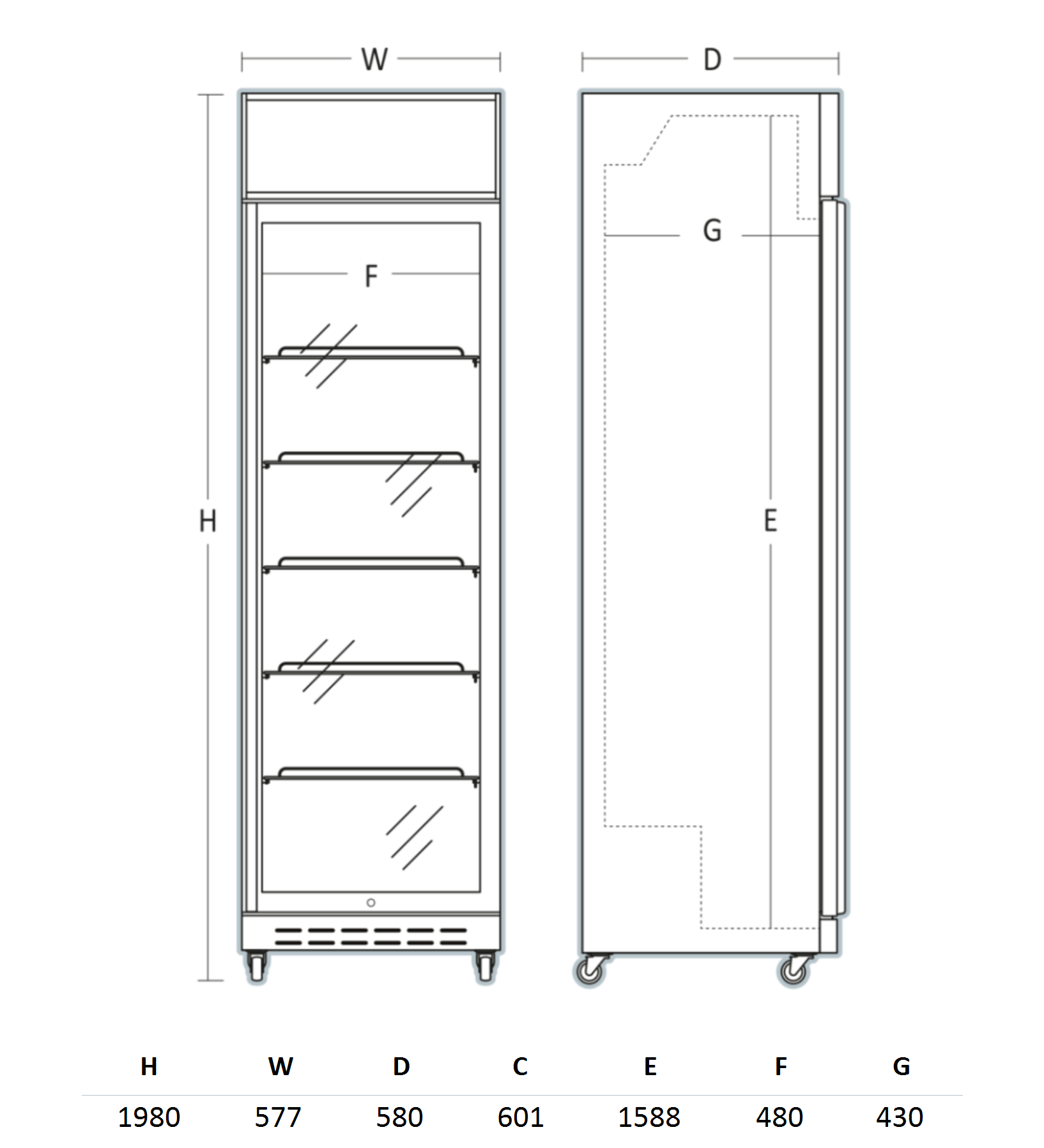

Product dimensions, HxWxD, mm: 1980 x 577 x 580
Product depth w/handle, mm: 601
Packaging dimensions, HxWxD, mm: 630 x 624 x 2035
Total packaging volume m3: 0,8
Gross- / Net weight, kg: 74 / 69
Gross volume, L: 386
Net volume, L: 360
Internal dimensions, HxWxD, mm: 1588 x 480 x 430
Voltage / hertz, V/hz: 220-240V / 50hz
No. of electrical phases: 1L+N
Watt / Ampere, W/A: 250 / 1,4
Length of Powercord, cm: 220
Outside colour: Black
Inside Colour: Black
Colour and material of door/lid: Black
Edge trim on shelves / drawers: None
33 cl Bottle 230,0 x 63,0 mm: 245
50 cl Bottle 260,0 x 66,7 mm: 165
25 cl Can 134,0 x 53,3 mm: 611
33 cl Can 115,2 x 66,3 mm: 402
33 cl Slim Can 146,0 x 57,5 mm: 472
50 cl Can 160,0 x 66,3 mm: 273
Old Alternative: SD 420 BE
Total packaging weight, kg: 4,9
Cardboard, kg: 4
Paper, kg: 0
Plastics, kg: 0,9
Wood, kg: 0
Metals, kg: 0
Aluminium, kg: 0
DCC420BD
item no.: 263111DCC420BD
- Product dimensions, HxWxD, mm 1980 x 577 x 580
- Gross volume, L 386
- Climate class CC2
- Humidity range (%RH) 65
- Brand Scancool
- ■ Self-closing hinged glass door with lock
- ■ 5 adjustable black coated wire shelves
- ■ 2 Integrated vertical LED lighting for enhanced merchandising
- ■ Illuminated canopy for branding
- ■ Fan assisted cooling for even temperature
- ■ Heavy-duty castors for smooth and easy mobility
- ■ Ideal for branding and in-store promotion
